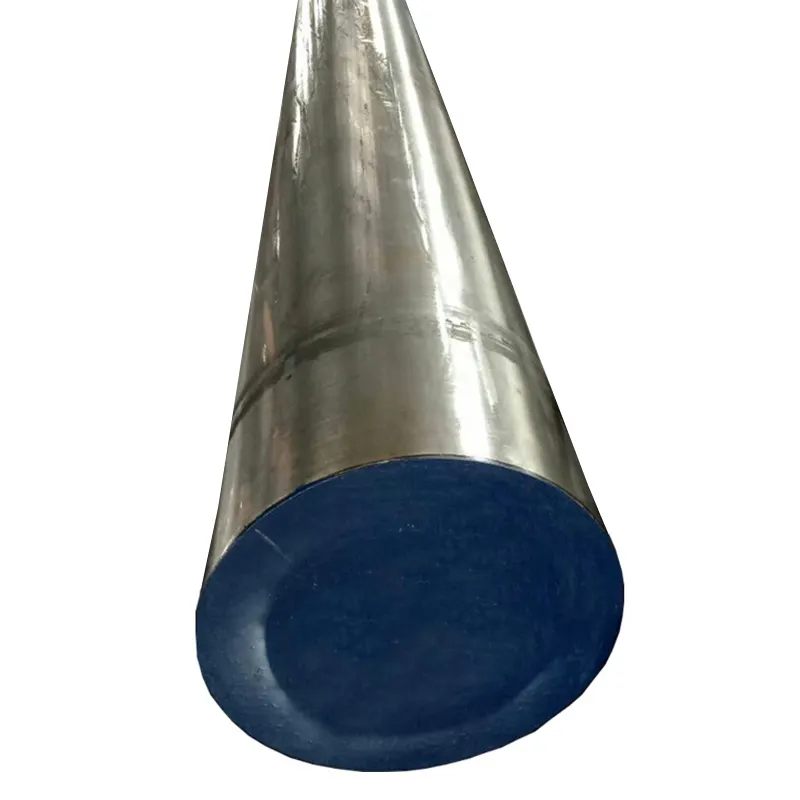

18 NiCrMo5 Alloy Steel Bar
Hom: Round bar
Lub sij hawm xa tuaj: Annealed dub nto / Tig ci nto / Q ntxiv T
Khoom Description
18NiCrMo5 yog cov hlau uas muaj cov khoom siv zoo, haum rau kev kho cua sov carburizing; Qhov tseeb, ntawm cov tshwj xeeb nto hardening steels, nws yog cov nto moo tshaj plaws thiab siv hlau hauv ltalis. Nws muaj nruab nrab-siab hardenability thiab zoo machinability. Nws tuaj yeem muab rau hauv daim ntawv yob bar, tev bar, kos bar thiab forged bar. Nws yog dav siv los tsim cov khoom hnav, xws li lub zog, pinions, bushings, camshafts.
18NiCrMo5 steel hlau yam ntxwv:
Italian 18NiCrMo5 alloy structural steel muaj siab zog, yas thiab siab hardenability, feem ntau yog siv nyob rau hauv quenched thiab tempered los yog carburized quenching tej yam kev mob
18NiCrMo5 steel khoom:
Mechanical zog:
Tensile zog σ b (MPa): Ntau dua lossis sib npaug rau 1225
yield zog σ s (MPa): Ntau dua lossis sib npaug rau 980
Elongation δ 5 (%) : Ntau dua lossis sib npaug rau 8
Txo thaj tsam ψ (%) : --
Lub zog cuam tshuam Akv (J): Ntau dua lossis sib npaug rau 30
Hardness: Tsawg dua los yog sib npaug rau 207HB
Cov khoom parameter
| AFNOR | DIN | UNI | BS |
| 18 NCV6 | 1.6556/17NiCrMo6-4 | 18 NiCrMo5 | 815M17 |
18 NiCrMo5Chemical composition (mass feem) (wt.%)
| C (%) | Si (%) | Mn (%) | P (%) | S (%) | Cr (%) | Ni (%) | Mo (%) |
|---|---|---|---|---|---|---|---|
| 0.15~0.21 | 0.15~0.40 | 0.60~0.90 | Max 0.035 | Max 0.035 | 0.70~1.00 | 1.20~1.50 | 0.15-0.25 |
18NiCrMo5 steel daim ntaub ntawv
Nws yog tsuas yog siv los ua lub ntsiab ncej uas yuav tsum tau muaj zog, siab hardness thiab siab toughness nyob rau hauv hnyav load tej yam kev mob, thiab ncej thiab pas nrig yuav tsum tau high center toughness los yog bearing cuam tshuam load, nto abrasion kuj thiab me me kev kho cua sov deformation, raws li zoo raws li ntau yam kis tau tus mob, kho screws, camshafts, thiab lwm yam. ua hauj lwm nyob rau hauv kev kub ceev thiab tej yam load.

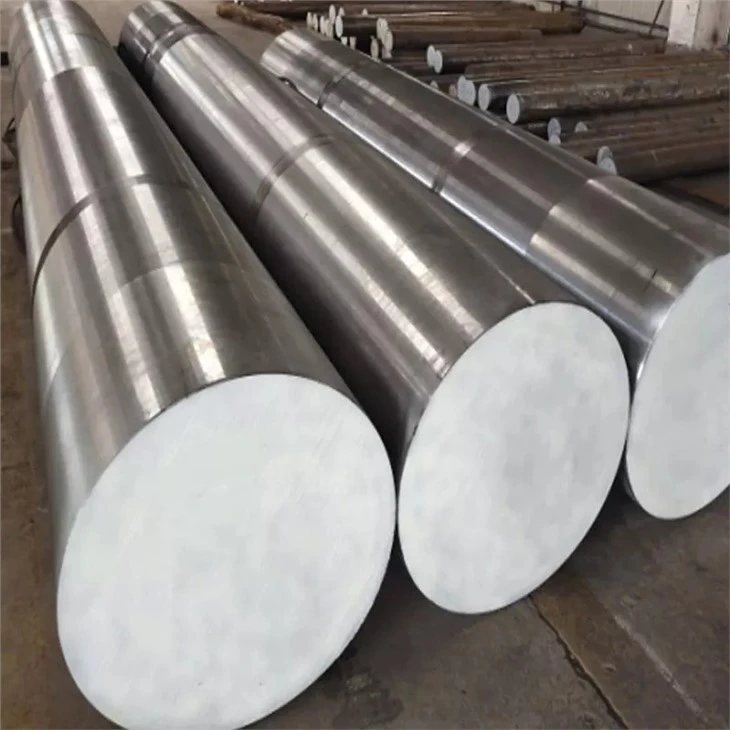

Khoom duab
Peb lub Hoobkas
Hlau Ua
Ingot Production
Forged Bars
Tshuab
Packing & Delivery
Packing & Delivery
-
Qhov loj me ntawm lub thawv yog hauv qab no:
-- 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft HG: 11.8m (ntev) x 2.13m (dav) x 2.72m (siab)
Peb Qhov Kev Pabcuam
1. Tus nqi sib tw thiab zoo los ntawm peb lub Hoobkas.
2. Kev pabcuam zoo tshaj plaws nrog 24 teev teb.
3. Kev them nyiaj yooj yim nrog T / T, L / C, thiab lwm yam.
4. Muaj peev xwm ua tau zoo (1000tons / hli).
5. Ceev tus me nyuam thiab txheem exporting pob.
