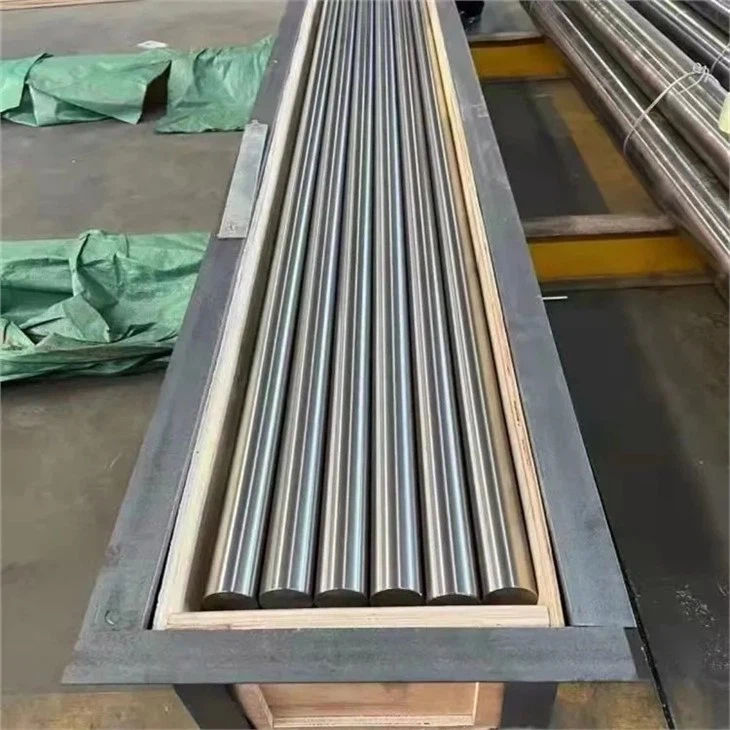

79hm Permalloy Mos Sib Nqus Alloy Qws Ni79mo4
Khoom Description
Ni79Mo4 hlau-nickel alloy yog ib tug 79-80 feem pua npib tsib xee alloy, siab saturation magnetic induction mos magnetic alloy, nrog siab pib permeability, siab permeability thiab tsawg coercivity. Lub saturation sib nqus induction siv ntawm 1J79 yog ntau dua 0.75T. 1J79 alloy muaj kev ua haujlwm zoo tiv thaiv xeb thiab kev ua haujlwm, thiab tuaj yeem siv los ua cov khoom nrog cov duab thiab qhov ntau thiab tsawg.
79hm Permalloy Chemical Compositions feem pua
| Ni | 78.5~80.0 | Fe | Bal. | Mn | 0.6~1.1 | Si | 0.3~0.5 |
| Mo | 3.8~4.1 | Cu | Tsawg dua lossis sib npaug rau 0.2 | ||||
| C | Tsawg dua lossis sib npaug rau 0.03 | P | Tsawg dua lossis sib npaug rau 0.02 | S | Tsawg dua lossis sib npaug rau 0.02 |
nqe 79m4Mechanical Properties
Basic lub cev tsis tu ncua thiab mechanical zog ntawm cov alloy:
Ceev:=8,6 g / cm3;
Hluav taws xob tiv taus: ρ=0, 55 ohm mm2 ? / m;
Qhov kub ntawm Curie point: Θs = 430 degree C;
Saturation magnetostriction: λS = 2 ? 106;
Brinell hardness ntawm 210/120 HB;
Qhov kawg: RM = 1030/490 MPa;
Yield zog: σ0, 2 = 980 145 MPa;
Modulus ntawm elasticity E=210 kN / mm2;
Elongation: δ{{0}/50 feem pua ;
Tus txheeb ze compression: φ=- feem pua .
| Khoom siv hlau nplaum | |||||||
| nqe 79m4 | Pib permeability | Qhov siab tshaj plaws permeability | Kev quab yuam | Saturation sib nqus induction | |||
| Txias dov strip / phaj Thickness, hli |
μ0.08/ (mH / m) | μm/ (mH / m) | Hc / (A / m) | BS/ T | |||
| Ntau dua lossis sib npaug | Tsawg dua los yog sib npaug | ||||||
| 0.01 hli | 17.5 | 87.5 | 5.6 | 0.75 | |||
| {0}.1 ~ 0.19 hli | 25.0 | 162.5 | 2.4 | ||||
| {0}.2 ~ 0.34 hli | 28.0 | 225.0 | 1.6 | ||||
| {{0}}.35 ~ 1.0 hli | 30.0 | 250.0 | 1.6 | ||||
| 1.1 ~ 2.5 hli | 27.5 | 225.0 | 1.6 | ||||
| 2.6 ~ 3. {3}} hli | 26.3 | 187.5 | 2.0 | ||||
| Cold kos hlau | |||||||
| 0.1 hli | 6.3 | 50 | 6.4 | ||||
| Bar | |||||||
| 8-100 hli | 25 | 100 | 3.2 | ||||
Ni79Mo4 Txoj kev kho cua sov
| Annealing nruab nrab | Qhuav hydrogen (lub lwg taw tes tsis siab tshaj {{0}} degree) los yog lub tshuab nqus tsev, lub residual siab tsis ntau tshaj 0.1Pa |
| Cua sov kub thiab ceev | 1100 ~ 1150 degree |
| Tuav lub sijhawm / h | 3~6 |
| Txias tus nqi | Txias rau 600 degree ntawm tus nqi ntawm 100 ~ 200 degree / h, thiab txias sai sai rau 300 degree thiab tawm ntawm qhov cub |
Ni79Mo4 Muab daim ntawv thiab specification
| Alloy qib | Daim ntawv | Loj | ||
| nqe 79m4 | Hlau | D= 0.1 ~ 8 hli | ||
| nqe 79m4 | Sawb | W=8 ~ 390 hli | T= 0.3 hli | |
| nqe 79m4 | Ntawv nyiaj | W=10 ~ 100 hli | T{0}.01 ~ 0.1mm | |
| nqe 79m4 | Bar | Dia=8 ~ 100 hli | L= 50 ~ 1000 hli | |
1J79 (Soft magnetic alloy)
(Lub Npe: Ni79Mo4, E11c, mallow, permalloy, 79HM)
High permeability mos magnetic alloy
High permeability mos magnetic alloy tsuas yog npib tsib xee puag alloy, nickel cov ntsiab lus yog tshaj 75 feem pua, hom alloy no muaj qhov siab heev pib permeability thiab permeability.Feem ntau hu ua permalloy, tseem hu ua thaum ntxov high magnetic conductivity alloy.Lawv tag nrho muaj zoo. Kev ua tau zoo, tuaj yeem dov rau hauv nyias strip.Alloy yog tsim rau daim ntawv thov nyob rau hauv lub ac tsis muaj zog magnetic teb.Xws li TV thiab instrumentation nyob rau hauv ntau yam suab transformer, lub siab precision choj transformer, transformer, sib nqus shielding, magnetic amplifier, magnetic modulator, suab lub taub hau, choke, precision hluav taws xob ntsuas ntawm daim thiab daim, thiab lwm yam
79HM dav siv nyob rau hauv xov tooj cua-electronic kev lag luam, precision instruments, chaw taws teeb tswj thiab tsis siv neeg tswj system.
Cov khoom parameter
Mos magnetic alloysyog ib chav kawm ntawm alloys nrog siab permeability thiab tsawg coercivity nyob rau hauv tsis muaj zog magnetic teb. Raws li cov khoom sib txawv uas tsim cov hlau, nws tuaj yeem muab faib ua electromagnetic ntshiab hlau (kev lag luam ntshiab hlau), hlau-silicon alloy, hlau-nickel alloy, hlau-aluminium alloy, hlau-silicon-aluminium alloy thiab hlau-cobalt. alloy, thiab lwm yam.
1J06,1J12,1J17,1J18,1J22,1J30,1J36,1J38,1J46,1J50,1J51,1J54,1J76,1J77,1J79,1J80,1J85,1J87
Khoom duab
Peb lub Hoobkas
Hlau Ua
Ingot Production
Forged Bars
Tshuab
Packing & Delivery
Packing & Delivery
-
Qhov loj me ntawm lub thawv yog hauv qab no:
-- 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft HG: 11.8m (ntev) x 2.13m (dav) x 2.72m (siab)
FAQ
Koj lub sijhawm ua haujlwm yog dab tsi?
Monday-Friday : 8:30AM-17:00PM (Peijing time, GMT plus 08.00)
Peb muaj hnub so rau pej xeem thaum lub Tsib Hlis 1-3, Kaum Hli Ntuj 1-7 thiab hnub so Suav Xyoo Tshiab Pls e-mail rau peb thaum peb hnub so yog tias koj muaj lus nug.
Koj puas muab cov qauv dawb?
Yog lawm, peb tuaj yeem muab cov qauv dawb rau kev kuaj, tus neeg yuav khoom yuav tsum tau them tus nqi thauj khoom.
Koj cov nqe lus them nqi yog dab tsi?
T / T, L / C, D / A, D / P, Western Union, MoneyGram, Paypal
Lub sijhawm ua haujlwm yog dab tsi?
Feem ntau cov qauv coj mus kuaj yog 15 hnub tom qab kev txiav txim tau lees paub.
