Ballistic Steel Phaj Rau Kev Siv Tub Rog

Ballistic Steel Plate For Millitary Use

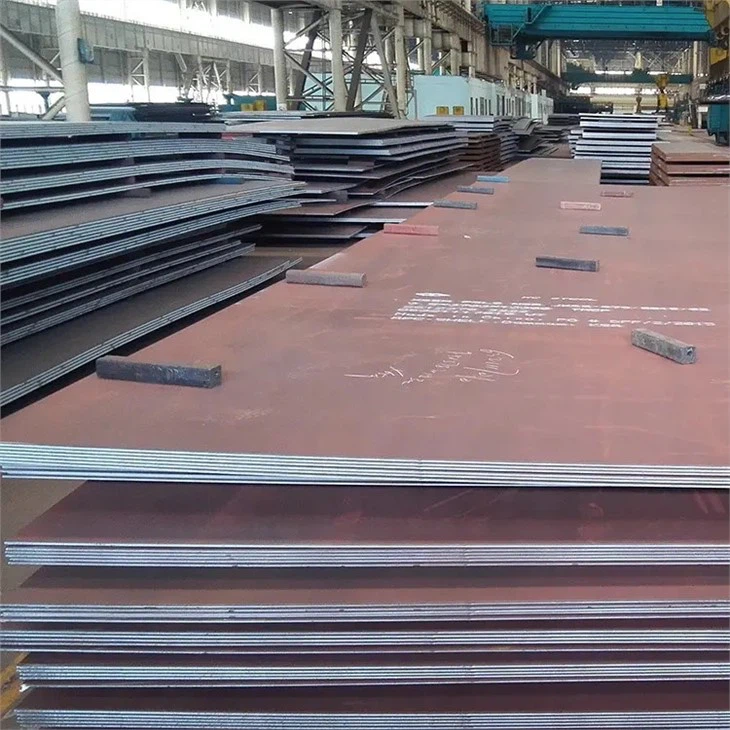

Ballistic Steel Plate For Millitary Use
Ballistic Steel Plate For Millitary Use
Ballistic Steel Plate For Millitary Use

Ballistic Steel Phaj Rau Kev Siv Tub Rog

Kev tiv thaiv Ballistic: Hom 95 5.8mm phom nrog 87 hom 5.8mm ib txwm mos mos
M16 5.56mm tsis siv neeg phom nrog SS109 phom mos txwv
AK47 NATO 7.62x51

Xa kev nug

Khoom Taw qhia

Khoom Description

Lub npe khoom: Lub zog siab tub rog Ballistic Puv Bulletproof Armor Steel Phaj
Qauv: BS016
Hardness: Ntau dua los yog sib npaug rau 500 Hb
Kev tiv thaiv Ballistic: Hom 95 5.8mm phom nrog 87 hom 5.8mm ib txwm mos txwv, M16 5.56mm tsis siv neeg phom nrog SS109 phom mos txwv.
Flatness Tolerances raws li EN 10 029 Chav N (hom L).
Thickness: 6.5mm, 8.0mm, 10.0mm, txhawb customization
Loj: txhawb customization
Kev tiv thaiv qib: NIJ III
Tensile zog: 1515 MPa
Tawm zog: 1882 MPa
Elongation tom qab so: 10.0 feem pua

Armor Ballistic Steel Phaj Chemical compositions

Bulletproof Steel Phaj rau Aim Shooting

Bulletproof Steel Plate for Aim Shooting

Cov khoom parameter

Specifications ntawm cov khoom hauv Tshuag

(4mm-20mm) × (1500mm-2000mm) × 6000mm (saum toj no)

Pro500 Hnav Resistance Bulletproof Hlau Phaj

Yam khoom

Tank armor phaj bulletproof

steel: 26SiMnMo(Gy5).28Cr2Mo(Gy4).22SiMn2TiB(616).

Nyiaj ntsuab rau cov mos txwv hlau: BARMOY 600(GA164-2005).
Aviation mos txwv hlau phaj: 32CrNi2MoTiA(A-8).32Mn2Si2MoA(F-3).F-6.
Nkoj nrog cov phom tsis muaj phom: F-1(F-1G; F-1Z) Kev tiv thaiv cov nkoj turrets.
Artillery bulletproof steel: 32Mn2SiA(F-2).
Lub kaus mom hlau tsis muaj phom: 232
Armored hlau: PRO 500.

Hom hlau	Thickness ntawm cov qauv mm	Hom riam phom	Ceev ntawm cov mos txwv m/s	Shooting ntau m	Txuj
PRO 500	2.5-3.0	Handgun & Magnum & CN 79 hom-micro submachine phom	440-500	5	NIJ III, IIIA CN A & B
PRO 500	4.0	AK 47 7.62x39	720	10	--
PRO 500S*	5.5	M16 5.56 x 45 (SS109) NATO 7.62x51	950 840	10	TS EN 1063 B6
PRO 500	6.5	M16 5.56 x 45 (SS109) NATO 7.62x51	950 840	10	EN1063 B6 NIJ 0108.01 III
PRO 500	10.0	M16 5.56 x 45 (M193)	980	10	--

Kev siv:
Bulletproof steel phaj yog tsuas yog siv nyob rau hauv bulletproof explosion pov thawj ntawm tej yaam num, xws li mos txwv qhov rooj, mos mos kaus mom hlau, lub cev armor, mos mos ntaub thaiv npog; bank txee, qhov chaw ruaj ntseg; armored neeg nqa khoom, tank, submarines, tsaws khoom siv tes ua, lub cruiser, helicopters , lwm

Txias khoov ntawm armor phaj
Ua raws li cov lus qhia no kom tsis txhob tawg thaum txias khoov:
Loj txaus indenter radius thiab pwm fulcrum sib nrug;
Khoov los ntawm tensile sab thiab ntug ntawm lub phaj yuav tsum tau polished, rounded npoo ntawm txoj cai kaum;
Indenter thiab pwm fulcrum yuav tsum du;
Tshwj xeeb yog tsim nyog thaum rhuab mus rau qis dua 250 ºC.
Ar500 High Strength Ballistic/Bulletproof Steel Plate

Khoom duab

Anti Ak47 Nij III Armor Plate PRO500s Bulletproof Steel Plate

Txiav raws li koj daim duab los ntawm laser txiav tshuab:
Txiav los ntawm CNC tej tshuab:
CNC tej cuab yeej

CNC nplaim taws txiav tshuab
Siv tau txiav ntev: 20000mm
Ua tau zoo txiav dav: 5000mm
Max txiav thickness: 120mm
Txiav precision: ntxiv /-2mm
Txiav ceev: 50--6000mm/min

CNC plasma txiav tshuab underwater
Ua tau zoo txiav ntev: 17000mm
Ua tau zoo txiav dav: 5000mm
Max txiav thickness: 30mm
Txiav precision: ntxiv /-1mm
Txiav ceev: 50--6000mm/min

CNC Laser tej tshuab
Siv tau txiav ntev: 20000mm
Ua tau zoo txiav dav: 5000mm
Max txiav thickness: 20mm
Txiav precision: ntxiv /-0.2mm
Txiav ceev: 50--6000mm/min

CNC dabtsi yog khoov machine
3600tons ntawm lub tshuab dabtsi yog khoov
Max dabtsi yog khoov ntev: 12200mm
Max dabtsi yog khoov dav: 4400mm

Khoov lub kaum sab xis:<90 degree

Peb lub Hoobkas

Hlau Ua

Ingot Production

Wholesale-Best-Quality-JIS-ASTM-DIN-45-1045-1-0503-ASTM-JIS-DIN-60si2mn-9260-Sup7-60sicr7-DIN-ASTM-Mn13-X120mn12-1-3401-Carbon-Steel-Sheet-for-Construction 1

Forged Bars

Tshuab

Packing & Delivery

Abrasion-Grade-X120mn12-Nm360-Nm400-Wear-Resistant-Steel-Plate

Packing & Delivery

Packing nthuav dav: Txau xim rau hauv Bundle lossis raws li tus neeg thov. Chaw nres nkoj: Txhua qhov chaw nres nkoj Suav

Qhov loj me ntawm lub thawv yog hauv qab no:

-- 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab)

-- 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft HG: 11.8m (ntev) x 2.13m (dav) x 2.72m (siab)

Peb Qhov Kev Pabcuam

Kev lag luam ntaub ntawv

Cov ntsiab lus ua lag luam	FOB, EX-W, CIF, C&F, CRF, DAP, thiab lwm yam
Chaw thau khoom chaw nres nkoj	TIANJIN, SHANGHAI, DALIAN, QIONGDAO, thiab lwm yam
Cov nqe lus them nqi	1) 30 feem pua ua ntej them nyiaj los ntawm T / T, qhov nyiaj tshuav tiv thaiv daim B / L los ntawm T / T. 2) 30 feem pua ua ntej them los ntawm T / T, qhov nyiaj tshuav los ntawm L / C thaum pom. 3) 100% L / C thaum pom.
MOQ	500 kg
Lub sij hawm xa tuaj	3 ~ 5 hnub
HS code	7304113000
