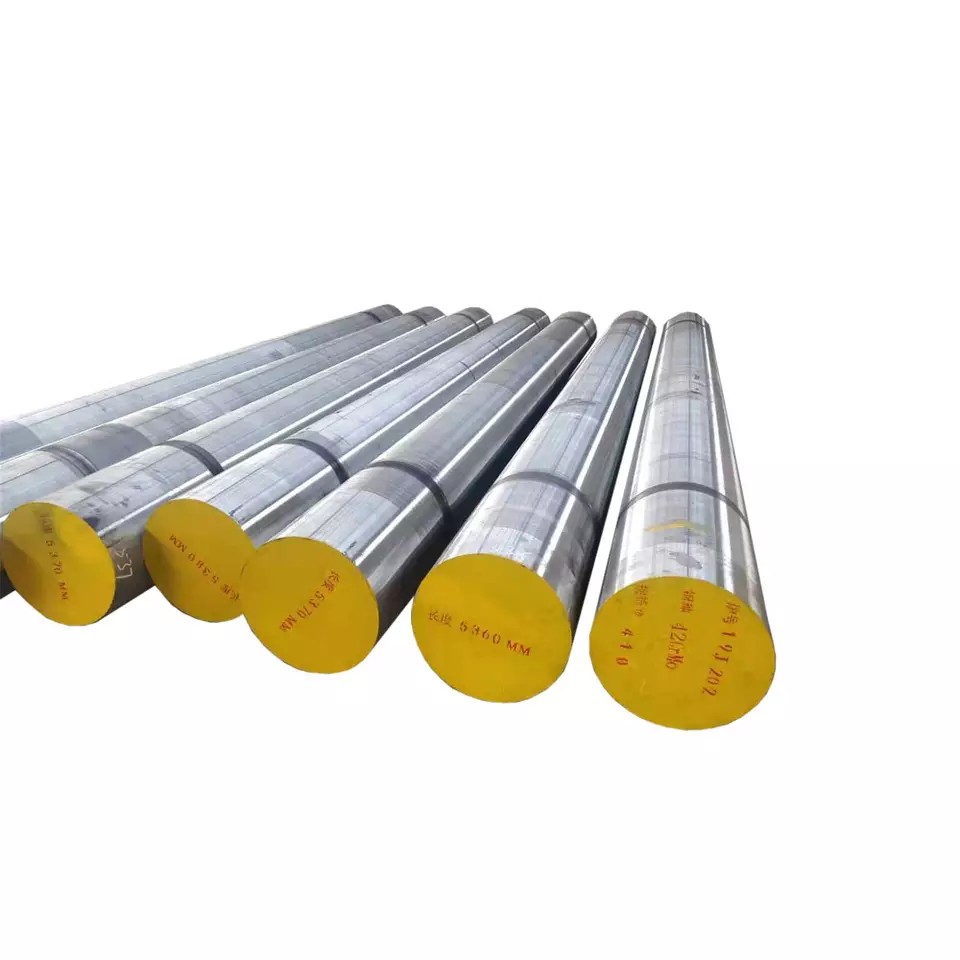

DIN 1.2419 Cov Cuab Yeej Ua Haujlwm Txias Hlau Bar
Hom: Round bar
Lub sij hawm xa tuaj: Annealed dub nto / Tig ci nto / Q ntxiv T
Khoom Description
1.2419 steel yog cov feem ntau siv siab carbon alloy cuab yeej steel rau pwm ua.1.2419 steel muaj siab hardenability. Raws li tungsten cov ntaub ntawv tungsten carbide, cov hlau no muaj ntau tshaj carbide, siab hardness thiab hnav tsis kam tshaj chromium steel thiab 1.2607 Steel. Tsis tas li ntawd, tungsten kuj tseem pab khaws cov nplej zoo, uas ua rau cov hlau tau zoo dua toughness. Yog li ntawd, cov cuab yeej txiav ua los ntawm CrWMn steel muaj tsawg dua qhov tshwm sim ntawm ntug thiab tuaj yeem tswj tau qhov zoo thiab qhov loj ntawm ntug.
1.2419 Steel Thaum tshav kub kub kho
1.2419 Steel Yam ntxwv:
1.2419 steel yog siv dav siv dav hauv kev ua haujlwm txias tuag steel, hu ua "tsis hloov pauv steel", tab sis nws yog rhiab heev rau kev tsim cov carbides network. Nws yog tsuas yog siv rau kev txiav cov cuab yeej (xws li broaches, ntev kais, ntev reamers, tshwj xeeb milling cutters) thiab ntsuas cov cuab yeej (xws li tuag, thaiv gauges, gauges, qauv kab, qauv tes tsho) nrog me deformation thiab complex zoo thaum quenching, as well as high-precision txias stamping tuag nrog seem me me thiab cov duab nyuaj.
.
Cov khoom parameter
| GB | CrWMn |
| ASTM | SIB 31 |
| DIN | 1.2419 |
1.2419 Tshuaj muaj pes tsawg leeg
| Txuj | Qib | C | Si | Mn | P/S | Cr | W |
| GB | CrWMn | 1.00-1.10 | 0.10-0.40 | 0.80-1.10 | 0.030(MAX) | 0.90-1.10 | 1.00-1.30 |
1.2419 Hlau Khoom
|
Qhov ntau thiab tsawg: |
Txoj kab uas hla (mm) |
Thickness (hli) |
Dav (mm) |
|
8 - 450 |
6 - 350 |
Max 810 |
|
Delivery condition: |
Mos annealed rau max. 240 HB |
Mos Annealing
Tshav kub rau 1050-850 degree, txias maj mam hauv qhov cub. Qhov no yuav tsim qhov siab tshaj plaws Brinell hardness ntawm 230.
Kev ntxhov siab
Kev ntxhov siab kom tshem tawm cov kev ntxhov siab yuav tsum tau ua los ntawm cua sov kom txog li 750 degree, tuav rau 1-2 teev thaum tshav kub, ua raws li cua txias. Qhov kev ua haujlwm no yog ua los txo qis kev sib txawv thaum kho cua sov.
Hardening
Harden los ntawm qhov kub ntawm 1050-850 degree tom qab los ntawm roj quenching los yog sov da dej quenching 150-250 degree . Hardness tom qab quenching yog 64 HRC.
Tempering
Tempering kub: saib cov lus hauv qab no.
Tempering Kub (degree) VS. Hardness (HRC)
|
100 degree |
200 degree |
300 degree |
400 degree |
500 degree |
550 degree |
|
64 |
61 |
58 |
54 |
- |
- |
Khoom duab
Peb lub Hoobkas
Hlau Ua
Ingot Production
Forged Bars
Tshuab
Cov yam ntxwv ntawm 1.2419 steel:
1.2419 Muaj cov duab
Dub bar / tiaj bar / square bar
Bright - peeling ntxiv polishing / centerless sib tsoo / peeling ntxiv zawv zawg sib tsoo
Packing & Delivery
Packing & Delivery
-
Qhov loj me ntawm lub thawv yog hauv qab no:
-- 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft HG: 11.8m (ntev) x 2.13m (dav) x 2.72m (siab)
Peb Qhov Kev Pabcuam
1. Tus nqi sib tw thiab zoo los ntawm peb lub Hoobkas.
2. Kev pabcuam zoo tshaj plaws nrog 24 teev teb.
3. Kev them nyiaj yooj yim nrog T / T, L / C, thiab lwm yam.
4. Muaj peev xwm ua tau zoo (1000tons / hli).
5. Ceev tus me nyuam thiab txheem exporting pob.
Cov Lus Qhia Tshwj Xeeb ntawm AISI T4 High Speed Tool Steels
| Lub teb chaws | Teb chaws USA | German | Nyiv |
| Txuj | ASTM A600 1 | TS EN ISO 4957 Kev Tswj Xyuas Kev Nyab Xeeb | JIS G4403 |
| Qib | T4/T12004 | S 18-1-2-5/1.3255 | SKH 3 |
AISI T4 Tool Steel thiab Equivalents 'Chemical Composition
| ASTM A600 1 | C | Mn | P | S | Si | Cr | V | W | Mo | Co | ||||||||
| T4 | 0.70 | 0.80 | 0.10 | 0.40 | 0.03 | 0.03 | 0.20 | 0.40 | 3.75 | 4.50 | 0.80 | 1.20 | 17.50 | 19.00 | 0.40 | 1.00 | 4.25 | 5.75 |
| TS EN ISO 4957 Kev Tswj Xyuas Kev Nyab Xeeb | C | Mn | P | S | Si | Cr | V | W | Mo | Co | ||||||||
| S 18-1-2-5/1.3255 | 0.75 | 0.83 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 0.80 | 1.20 | 17.50 | 18.50 | 0.50 | 0.80 | 4.50 | 5.50 |
| JIS G4403 | C | Mn | P | S | Si | Cr | V | W | Mo | Co | ||||||||
| SKH 3 | 0.73 | 0.83 | … | 0.40 | 0.03 | 0.03 | … | 0.45 | 3.80 | 4.50 | 0.80 | 1.20 | 17.00 | 19.00 | … | … | 4.50 | 5.50 |
Mechanical Properties of T-4 Hlau
| Cov khoom | Metric | Imperial |
| Modulus ntawm elasticity | 190-210 GPa | 27557-30458 tsi |
| Poisson tus ratio | 0.27-0.30 | 0.27-0.30 |
Thermal Propertiesntawm T4 Tool Steels
| Cov khoom | Metric | Imperial |
| Thermal expansion co-efficient | 11.9 µm / m degree | 6.6 µin / hauv degree F |
Forging ntawm ASTM T4 Cov Khoom Siv Hlau
Forging ntawm T4 steel tuaj yeem nqa tawm ntawm 850 txog 1120 degree (1775 txog 2100 degree F).
Preheat T4 steel cov khoom sib xws thiab maj mam mus rau 860-880 degree .
Nce qhov kub ntawm forging mus txog 1050-1120 degree .
T4 hss cuab yeej steel yuav tsum tau txias heev maj mam tom qab forging.
AISI / ASTM T4 cuab yeej Steel Thaum tshav kub kub kho thiab khoom
Hardening:
Harden T4 kev kub ceev cov cuab yeej hlau los ntawm qhov kub ntawm 1260-1290oC ua raws li cov roj, cua quenching lossis da dej sov ntawm 550oC. Hardness tom qab quenching yog 63-66 HRC.
Annealing:
T4 steel yuav tsum tau annealed tom qab kub ua hauj lwm. Ua kom kub ntawm T4 kub ceev steel rau 860 degree (Max220 degree ib teev). Tuav ntawm qhov kub thiab txias maj mam nrog lub qhov cub. Lub annealed hardness tiav yuav tsum qis dua HB255.
Tempering:
Tempering kub: 2x 560-580oC. Hardness tom qab tempering yog 64-65 HRC.
Cim npe nrov: din 1.2419 txias ua hauj lwm cuab tam steel bar
