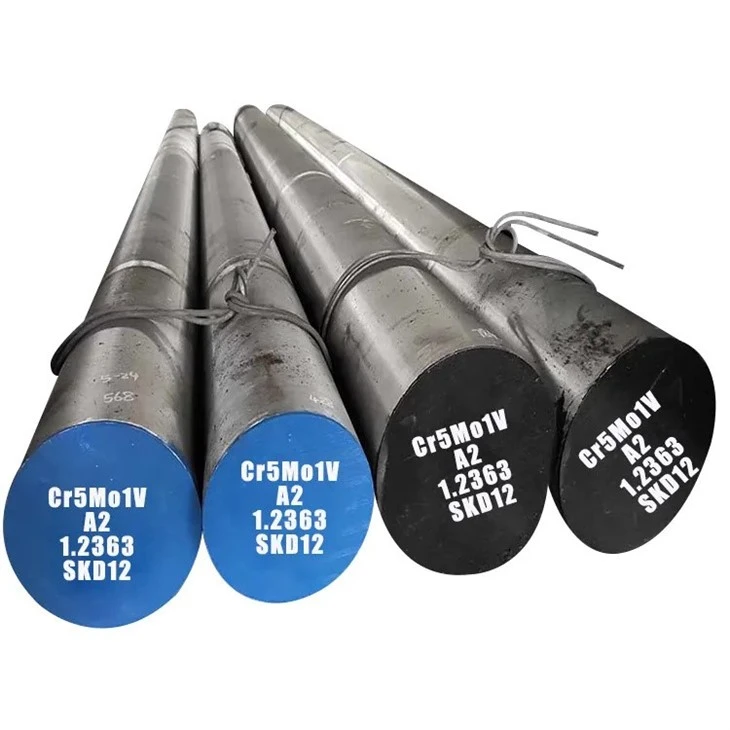

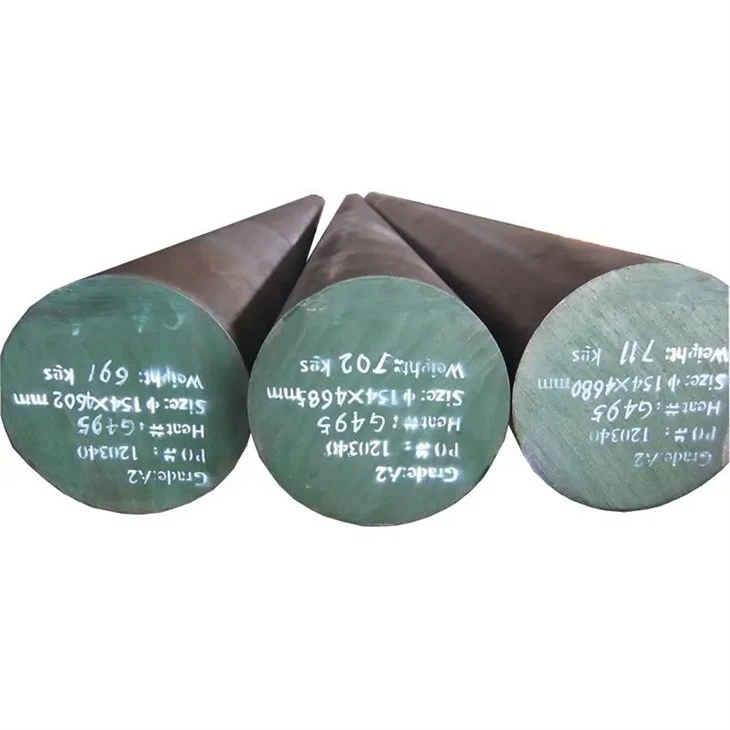

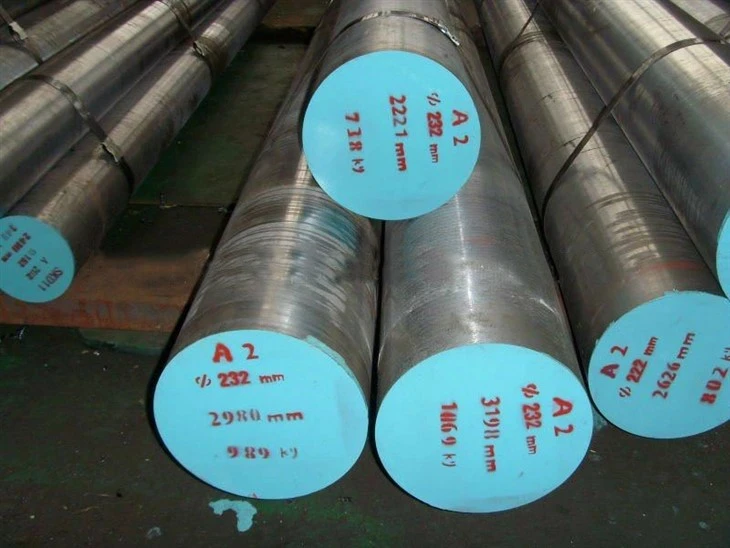

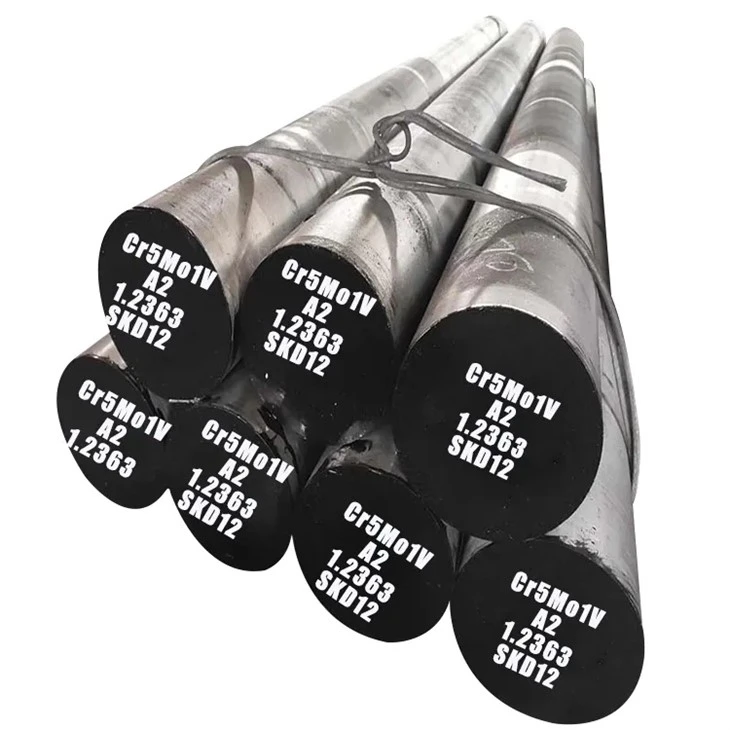

X100CrMoV5 Tool Steel Round Bar
Khoom Description
X100CrMoV5 Tool Steel Round Bar
1. Cov qib sib npaug JIS SKD12, AISI A2, DIN 1.2363, Cr5Mo1V Cov cuab yeej ua haujlwm txias
2. Kub dov los yog Forged, mob annealing, dub nto
3. Hardness: Tsawg dua lossis sib npaug ntawm 255HBS;
4. Kub dov tshuab: EAF ntxiv LF ntxiv VD
5. Ultrasonic xeem tus qauv: SPE1921-GR3, CLASS D/D lossis E/E
X100CrMoV5 Tool Steel Sib npaug qib thiab tshuaj muaj pes tsawg leeg:
| ASTM A681 Cov Khoom Siv Hluav Taws Xob | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| A2/T30102 | 0.95 | 1.05 | 0.40 | 1.00 | 0.03 | 0.03 | 0.10 | 0.50 | 4.75 | 5.50 | 0.15 | 0.50 | 0.90 | 1.40 |
| TS EN ISO 4957 Kev Tswj Xyuas Kev Nyab Xeeb | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| 1.2363/X100CrMoV5 | 0.95 | 1.05 | 0.40 | 0.80 | 0.03 | 0.03 | 0.10 | 0.40 | 4.80 | 5.50 | 0.15 | 0.35 | 0.90 | 1.20 |
| JIS G4404 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| SKD 12 | 0.95 | 1.05 | 0.40 | 0.80 | 0.03 | 0.03 | 0.10 | 0.40 | 4.80 | 5.50 | 0.15 | 0.35 | 0.90 | 1.20 |
| TIAB SA 4659 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| BA 2 | 0.95 | 1.05 | 0.30 | 0.70 | 0.035 | 0.035 | . . . | 0.40 | 4.75 | 5.25 | 0.15 | 0.40 | 0.90 | 1.10 |
Suface Option:
1 Dub Nto
2 Grounded: ci tab sis ntxhib; Tsis precision
3 Machining rau phaj: ci thiab precision; Me ntsis tig caws pliav
4 Peeled / Tig: ci thiab precision; Me ntsis tig caws pliav
5 Polished: Heev ci thiab precision loj; Tsis tig caws pliav
X100CrMoV5 Tool Steel Round Bar tsim cov txheej txheem
Hluav taws xob rauv Smelting (EF) → Ladle Rauv (LF) → Nqus Degassing (VD) → Argon tiv thaiv ingot → Multidirectional Forging → (Concave forging →) Normalizing plus Hydrogen Diffusion Annealing → Ultrasonic Flaw Detection → Queching plus Tempering Prehardened
Kev kho cua sov:
Annealing: 1, 800-850oC, qeeb txias 2, Spheroidizing
Quenching: 940-960oC, cua txias
Tempering:180-220oC, cua txias HRc=60-64 510-520oC, cua cooing HRC=57-60
Khoom duab
Peb lub Hoobkas
Hlau Ua
Ingot Production
Forged Bars
Tshuab
X100CrMoV5 Steel yog dab tsi?
X100CrMoV5 yog qib siab tshaj plaws ntawm steel bar siv los ua cov cuab yeej rau shaping hlau, ntoo, thiab lwm yam ntaub ntawv. X100CrMoV5 nruab nrab-carbon chromium alloy steel yog tus tswv cuab ntawm cov cuab yeej ua haujlwm txias ua haujlwm steel, tsim los ntawm American Iron thiab Steel Institute (AISI), uas suav nrog O1 low-carbon steel, X100CrMoV5 steel thiab D2 high-carbon high-chromium steel. X100CrMoV5 Tool Steel yog ntau yam, huab cua-hardening cuab yeej hlau uas yog tus yam ntxwv los ntawm zoo toughness thiab zoo heev seem stability hauv kev kho cua sov. X100CrMoV5 cov cuab yeej steel yog nruab nrab hauv kev hnav tsis kam ntawm O1 roj-hardening cuab yeej steel thiab D2 high-carbon, high-chromium cuab yeej hlau. X100CrMoV5 cov cuab yeej steel muab kev sib xyaw ua ke ntawm lub zog thiab lub zog, kev ua haujlwm ntawm cov cuab yeej, tus nqi, thiab ntau yam khoom siv.
Kev xa khoom
Packing & Delivery
-
Qhov loj me ntawm lub thawv yog hauv qab no:
-- 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft HG: 11.8m (ntev) x 2.13m (dav) x 2.72m (siab)
