H13 Tool Steel Phaj
Thickness: 16-400 hli
Dav: 185-2200mm
Ntev: 2000-5800mm
Chromium kub-ua hauj lwm cov cuab yeej steel yog cais raws li pawg H steels los ntawm AISI kev faib tawm. Cov hlau no pib ntawm H1 txog H19. H13 chromium kub-ua hauj lwm hlau yog dav siv nyob rau hauv kub thiab txias ua hauj lwm tooling daim ntaub ntawv. Vim nws zoo heev ua ke ntawm siab toughness thiab qaug zog tiv thaiv H13 yog siv ntau tshaj li lwm yam cuab yeej hlau nyob rau hauv daim ntawv thov tooling. H13 cov cuab yeej steel yog tsim rau kev tsim extrusion tuag.
Tshuaj muaj pes tsawg leeg
Qib Steel | C | Mn | Cr | V | Mo | S/P |
H13 | 0.32~0.45 | 0.20~0.50 | 4.75~5.50 | 0.80~1.20 | 1.10~1.75 | Tsawg dua lossis sib npaug rau 0.03 |
Specification (Qhov Loj) | Pav ca Bar | Round Bar |
Thickness: 16-400 hli | Dia: 20-200mm Ntev: 2000-5800mm | |
Qhov xwm txheej | Kub dov; 2/4 SIDECUT; Dub nto; Milled nto; Pre-Hardness 28-34HRC.Anneal:30-36HRC | Kub dov; Dub nto; Milled nto; Pre-Hardness 28-34HRC.Anneal:30-36HRC |
Kuaj | SGS / UT100 feem pua / Cov Khoom Ntsuas | |
Daim ntawv pov thawj | GB JIS AISI DIN | |
Lwm Lub Npe
AISI/SAE | DIN/EN | JIS | BS |
H13 | X40CrMoV5-1/1.2344 | SIB 61 | BH13 |
Lub cev muaj zog
Cov khoom | Metric | Imperial |
Qhov ceev (20 degree / 68 degree F) | 7.80 g / cm3 | 0.282 lb/in3 |
Melting point | 1427 degree | 2600 degree F |
Mechanical Properties
Cov khoom | Metric | Imperial |
Tensile zog, qhov kawg (20 degree / 68 degree F, sib txawv nrog kev kho cua sov) | 1200 - 1590 MPa | 174000 - 231000 psi |
Tensile lub zog, tawm los (20 degree / 68 degree F, sib txawv nrog kev kho cua sov) | 1000 - 1380 MPa | 145000 - 200000 psi |
Txo thaj tsam (20 degree / 68 degree F) | 50.00 feem pua | 50.00 feem pua |
Modulus ntawm elasticity (20 degree / 68 degree F) | 215 GPa | 31 200 tzs |
Poisson tus ratio | 0.27-0.30 | 0.27-0.30 |
Thermal Properties
Cov khoom | Cov xwm txheej T (degree) | Kev kho mob |
Thermal expansion | 10.4 x 10-6/ºC | - |
Thermal conductivity | 28.6 W / mK | - |
Kev xa khoom
Kub dov los yog forging
EAF lossis ESR cov ntaub ntawv
Dub los yog machined nto
Annealing, hardness: HBS<>
Ntau lawm

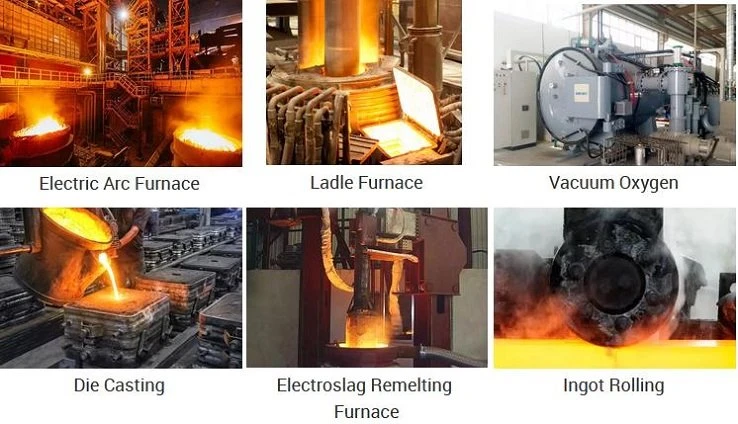

1.Steel Smelthing: (Ladle furance / Electric Arc Rauv / Nqus pa oxygen ).
2.Steel Ingot: (Ingot Rolling / electroslag remelting rauv).
3.Steel Round Bar: (Steel Round Bar / Steel Phaj).
4.Finished: (Txiav / Milling / Surfacing Griding / Thaum tshav kub kub kho / Round Steel Bar tig).
Yam ntxwv
H13 yog ua rau kub extrusion pwm, mandrel, alloy tuag custing, forging xovxwm pwm, precision-forging tshuab pwm, thiab lwm yam.High kuj mus rau tshav kub xyuas, zoo heev tiv thaiv thermal shock, zoo loj stability.
Ntim thiab xa khoom
Cim npe nrov: h13 cuab yeej steel phaj
