AISI 316L Stainless Hlau Bar
Khoom Description
AISI 316L yog ib qho derivative ntawm 18-8 hom austenitic stainless hlau, nrog 2 mus rau 3 feem pua ntawm Mo ntxiv. Cov ntsiab lus Mo ntawm 316L ua rau cov hlau no zoo heev rau pitting corrosion thiab tuaj yeem siv nyab xeeb hauv ib puag ncig uas muaj Cl- thiab lwm yam halogen ions. Raws li nws zoo heev corrosion kuj, nws muaj ntau yam kev siv hauv kev lag luam tshuaj.
AISI 316L Chemical Compositions
|
Qib ASTM
|
C
|
Si
|
Mn
|
S
|
P
|
Cr
|
Ni
|
|
316
|
Tsawg dua lossis sib npaug rau 0.08
|
Tsawg dua los yog sib npaug rau 1.00
|
Tsawg dua lossis sib npaug rau 2.00
|
Tsawg dua lossis sib npaug rau 0.030
|
Tsawg dua lossis sib npaug rau 0.045
|
16.00-18.00
|
10.00-14.00
|
|
316L
|
Tsawg dua lossis sib npaug rau 0.03
|
Tsawg dua los yog sib npaug rau 1.00
|
Tsawg dua lossis sib npaug rau 2.00
|
Tsawg dua lossis sib npaug rau 0.030
|
Tsawg dua lossis sib npaug rau 0.035
|
16.00-18.00
|
12.00-15.00
|
AISI 316L Lub cev ua haujlwm
| Yield zog | Tensile zog | Elongation | Brinell hardness | Tus nqi txo hauv cheeb tsam |
Qhov ntom | Tshwj xeeb kub muaj peev xwm |
| Mpa, Ntau dua lossis sib npaug | Mpa, Ntau dua lossis sib npaug | feem pua, ntau dua los yog sib npaug | HB | ψ (%) | g/cm3 | 20 degree, KJ·kg-1K-1 |
| 175 | 480 | 40 | Tsawg dua lossis sib npaug li 187 | Ntau tshaj los yog sib npaug rau 50 | 7.98 | 0.502 |
| Thermal conductivity (W·m-1·K-1) | ||
| 100 degree | 300 degree | 500 degree |
| 15.1 | 18.4 | 20.9 |

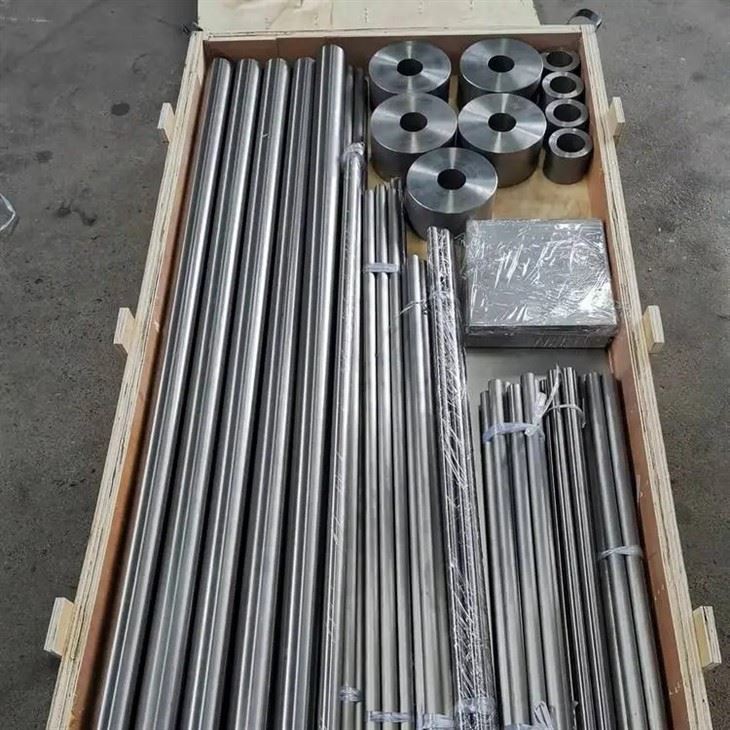

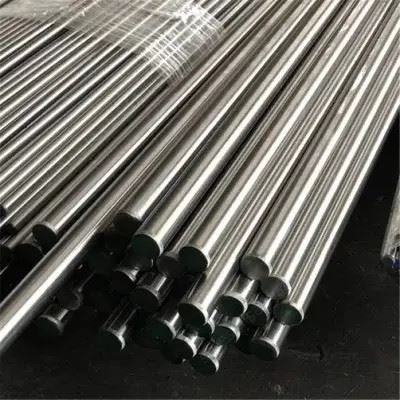

Khoom duab
Peb lub Hoobkas
Hlau Ua
Ingot Production
Forged Bars
Tshuab
Packing & Delivery
Packing & Delivery
-
Qhov loj me ntawm lub thawv yog hauv qab no:
-- 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft HG: 11.8m (ntev) x 2.13m (dav) x 2.72m (siab)
Peb Qhov Kev Pabcuam
1. Tus nqi sib tw thiab zoo los ntawm peb lub Hoobkas.
2. Kev pabcuam zoo tshaj plaws nrog 24 teev teb.
3. Kev them nyiaj yooj yim nrog T / T, L / C, thiab lwm yam.
4. Muaj peev xwm ua tau zoo (1000tons / hli).
5. Ceev tus me nyuam thiab txheem exporting pob.
