AISI 904L Stainless hlau Bar
Khoom Description
AISI 904L stainless hlau yog lub siab alloyed austenitic stainless hlau nrog cov ntsiab lus qis heev. Kev sib xyaw ua ke ntawm cov ntsiab lus siab ntawm chromium, npib tsib xee, molybdenum thiab tooj liab ua rau cov hlau zoo ua haujlwm tsis zoo rau corrosion. Qhov sib ntxiv ntawm tooj liab ua rau nws muaj zog acid tsis kam, tuaj yeem tiv taus ntau yam organic acids thiab inorganic acids, tshwj xeeb tshaj yog cov tshuaj chloride crevice corrosion thiab kev nyuaj siab corrosion cracking, tsis yooj yim rau tshwm corrosion me ntsis thiab tawg, thiab muaj zog pitting corrosion kuj. AISI 904L muaj qhov zoo corrosion kuj nyob rau hauv dilute sulfuric acid, thiab cov hlau no yog ib tug sib xws hlau rau lub zog corrosive nruab nrab ntawm dilute sulfuric acid. Nws kuj yog resistant rau seawater, muaj zoo machinability thiab weldability, thiab yog dav siv nyob rau hauv kev tsim kho, tshuaj, kho mob thiab lwm yam lag luam.
AISI 904L stainless hlau bar feem ntau siv nyob rau hauv reactors nyob rau hauv roj av thiab petrochemical khoom; sulfuric acid cia thiab cov khoom siv thauj mus los, xws li cov khoom siv cua sov; fais fab nroj tsuag flue gas desulfurization li, xws li ntauwd lub cev, flues, shutters, internals, tshuaj tsuag Washers thiab kiv cua nyob rau hauv organic acid kev kho mob systems; seawater kho cov cuab yeej, xws li seawater heat exchangers; cov khoom siv kev lag luam ntawv, sulfuric acid, cov khoom siv nitric acid; acid ntau lawm, kev lag luam tshuaj thiab lwm yam khoom siv tshuaj, cov hlab ntsha siab, khoom noj khoom haus.
AISI 904L Chemical Composition
| Khoom siv | 904L | |||
| Txuj | GB | JIS | ASTM/ASME | DIN |
| 015Cr21Ni26Mo5Cu2 | TSIS MUAJ | 904L | 1.4539 | |
| Tshuaj muaj pes tsawg leeg | C | Mn | P | S |
| <=0.02 | <=1.50 | <=0.045 | <=0.03 | |
| Si | Cr | N | Ni | |
| <=1.00 | 30--35 | <=0.01 | 19.0-23.0 | |
904L Stainless Hlau Round Bar Txheej Txheem
AISI 904L Mechanical thiab lub cev muaj zog (20 degree)
| Yield zog | Tensile zog | Elongation | Brinell hardness | Melting point | Qhov ntom | Elastic modulus |
| Mpa, Ntau dua lossis sib npaug |
Mpa, Ntau dua lossis sib npaug |
feem pua, Ntau dua lossis sib npaug |
HB | degree | g/cm3 | GPa |
| 230 | 530 | 35 | Tsawg dua lossis sib npaug li 230 | 1300~1390 | 8.0 | 195 |
Muab daim ntawv thiab specification
| Alloy qib | Daim ntawv | Specification | |
| AISI 904L | Hlau | Txoj kab uas hla =0.025mm ~ 8mm | |
| AISI 904L | Pav hlau | Dav =0.4 ~ 40mm | Thick =0.03 ~ 2.9 hli |
| AISI 904L | Sawb | dav =8 ~ 250mm | ThickT {{0}}.1 ~ 3.0mm |
| AISI 904L | Ntawv nyiaj | dav =6 ~ 120mm | Thick {0}}.003 ~ 0.1 hli |
| AISI 904L | Bar | Txoj kab uas hla =8 ~ 100mm | Ntev =50 ~ 1000 |

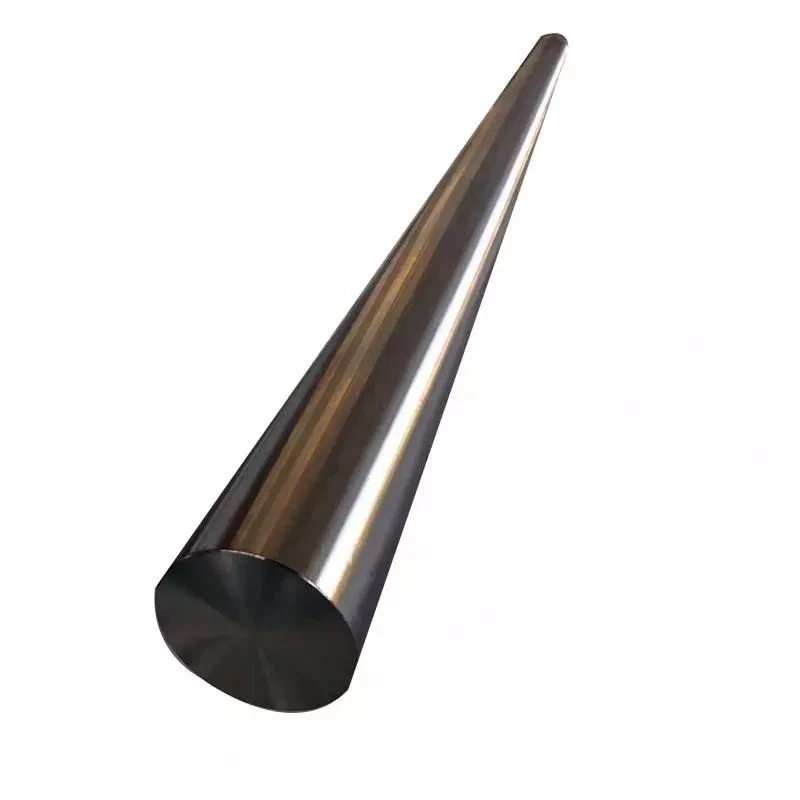

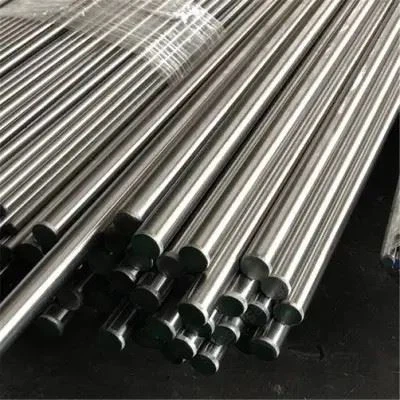

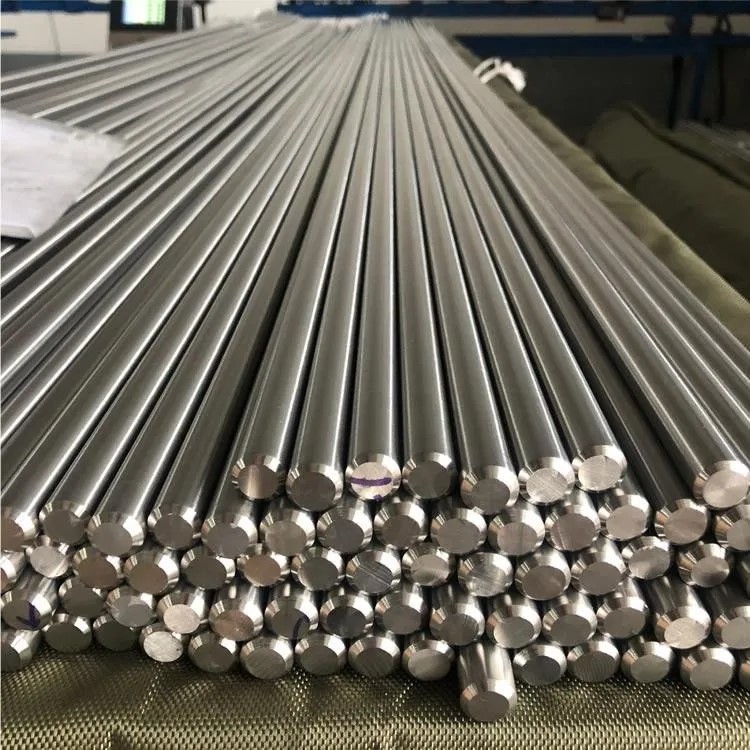

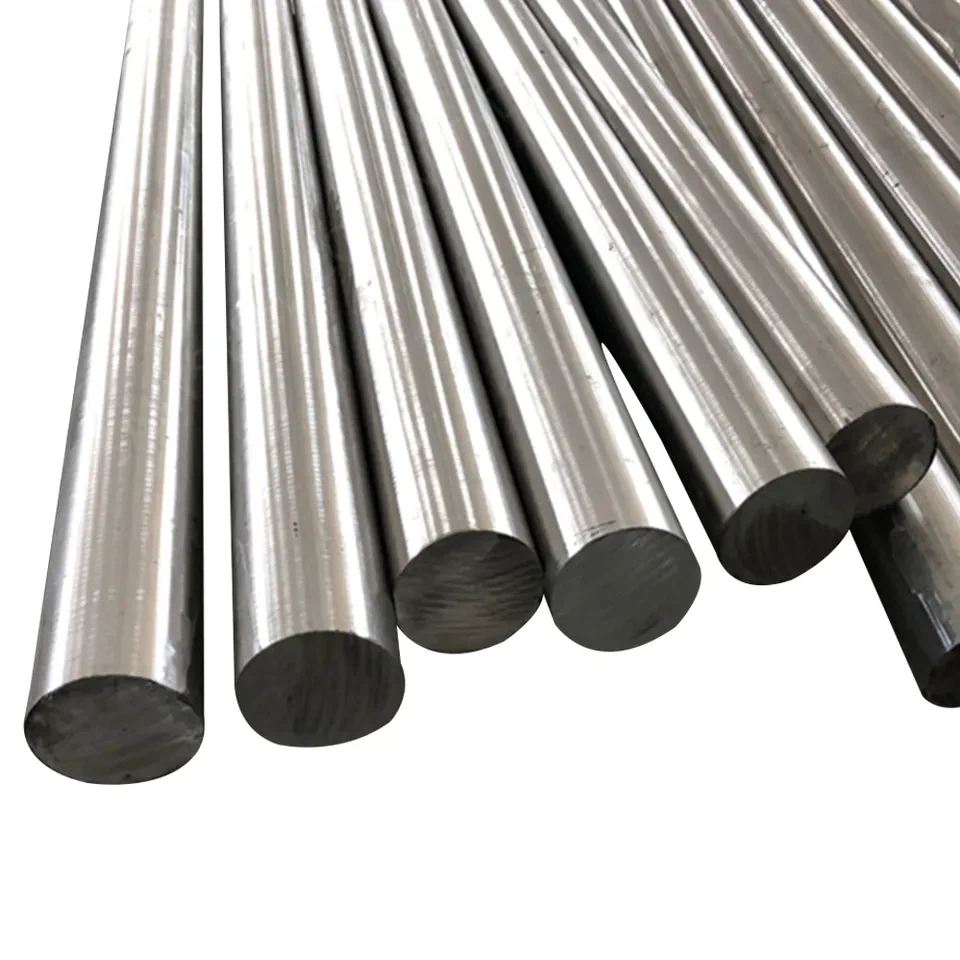

Khoom duab
Peb lub Hoobkas
Hlau Ua
Ingot Production
Forged Bars
Tshuab
Packing & Delivery
Packing & Delivery
-
Qhov loj me ntawm lub thawv yog hauv qab no:
-- 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m (siab)
-- 40ft HG: 11.8m (ntev) x 2.13m (dav) x 2.72m (siab)
Peb Qhov Kev Pabcuam
1. Tus nqi sib tw thiab zoo los ntawm peb lub Hoobkas.
2. Kev pabcuam zoo tshaj plaws nrog 24 teev teb.
3. Kev them nyiaj yooj yim nrog T / T, L / C, thiab lwm yam.
4. Muaj peev xwm ua tau zoo (1000tons / hli).
5. Ceev tus me nyuam thiab txheem exporting pob.
